Pneuma-DenseX / Pneumatic Transporter
Solid, Granular & powdered materials have been handled conventionally, by mechanical conveying equipments such as belt conveyers/screw conveyers/ bucket elevators/ goods lifts etc.
This newer concept is making the solids air borne, in a fluid state, with the help of air or an inert gas travelling in a closed pipeline. The concept was found very attractive due to a closed pipeline conveying & was picked up by most industries for handling of solids pneumatically, in the last three decades.
Depending on the product characteristics, air volume & pressures are applied at design stage. This parameters categorise the systems as either DENSE Phase Conveying System or DILUTE / LEAN Phase Conveying System.
TECHFLOW designs and manufactures dense phase conveying systems. They are also known as Pneumatic Transporters, material transporter, Foundry Sand Transporter. This system is used to convey the material like Bentonite conveying from source to multiple or single destination with the help of compressed air. These systems use higher conveying pressure with lesser air volume per kilogram of weight conveyed compared to LEAN phase system. Solids in powder form has a greater fluidisability hence the same are conveyed with this type. The pipeline usually has a denser solid component flowing in air, hence termed DENSE PHASE.
Dense Phase Pneumatic Conveying Systems are further categorised as PLUG TYPE & CONTINUOUS TYPE, as per the solids movement style in the pipe.
Medium to high pressures are required for this type of conveying, hence Dry compressed air is employed as prime moving force.
Conveying velocities are designed relatively lower & under 5 mtrs/sec. However starting pressures sometimes exceed 3 to 4 Bar designed commensurate with the distances to be conveyed & system resistance. The pipe diameters are designed as per the throughput requirement & however works out relatively smaller.

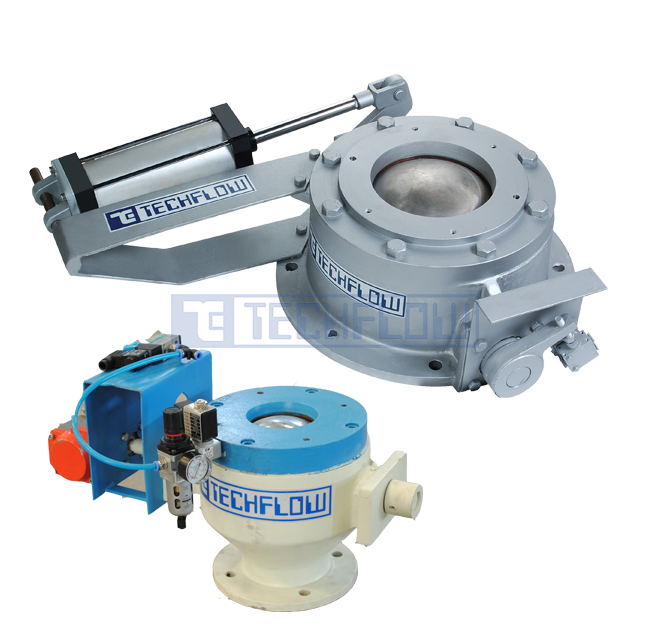

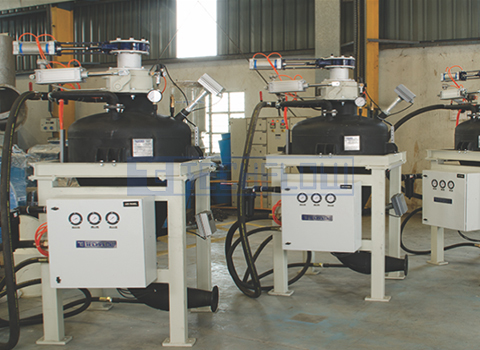

A pressure vessel is kept to receive & transport the powder material. A terminal pulse-jet filter is kept to vent out the conveying air. A set of compressed air valve & sensor system is usually come assembled on the vessel. A primary storage feed hopper is kept above the Vessel with an isolating Dome Valve in between. An electrical control panel with PLC programme is provided to operate the cycles of FILLING & CONVEYING
TECHFLOW designs and manufactures dense phase conveying systems. They are also known as Pneumatic Transporters, material transporter, Foundry Sand Transporter. This system is used to convey the material like Bentonite conveying from source to multiple or single destination with the help of compressed air. These systems use higher conveying pressure with lesser air volume per kilogram of weight conveyed compared to LEAN phase system. Solids in powder form has a greater fluidisability hence the same are conveyed with this type. The pipeline usually has a denser solid component flowing in air, hence termed DENSE PHASE.
Dense Phase Pneumatic Conveying Systems are further categorised as PLUG TYPE & CONTINUOUS TYPE, as per the solids movement style in the pipe.
Medium to high pressures are required for this type of conveying, hence Dry compressed air is employed as prime moving force.
Conveying velocities are designed relatively lower & under 5 mtrs/sec. However starting pressures sometimes exceed 3 to 4 Bar designed commensurate with the distances to be conveyed & system resistance. The pipe diameters are designed as per the throughput requirement & however works out relatively smaller.
A pressure vessel is kept to receive & transport the powder material. A terminal pulse-jet filter is kept to vent out the conveying air. A set of compressed air valve & sensor system is usually come assembled on the vessel. A primary storage feed hopper is kept above the Vessel with an isolating Dome Valve in between. An electrical control panel with PLC programme is provided to operate the cycles of FILLING & CONVEYING

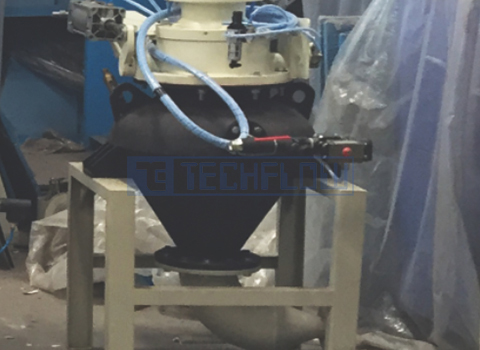

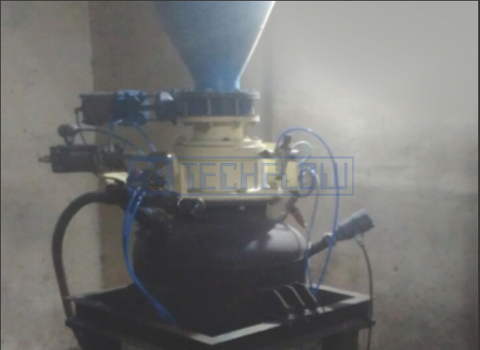

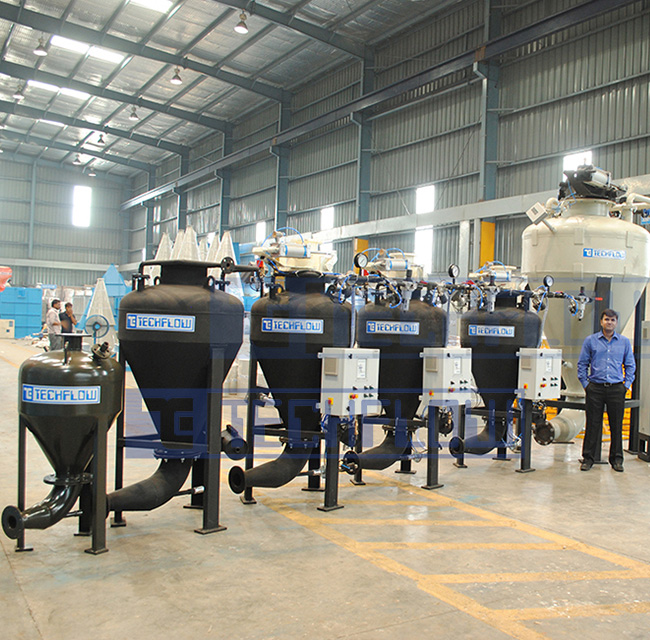

Dense Phase Pneumatic Transporter - Pneuma-DenseX

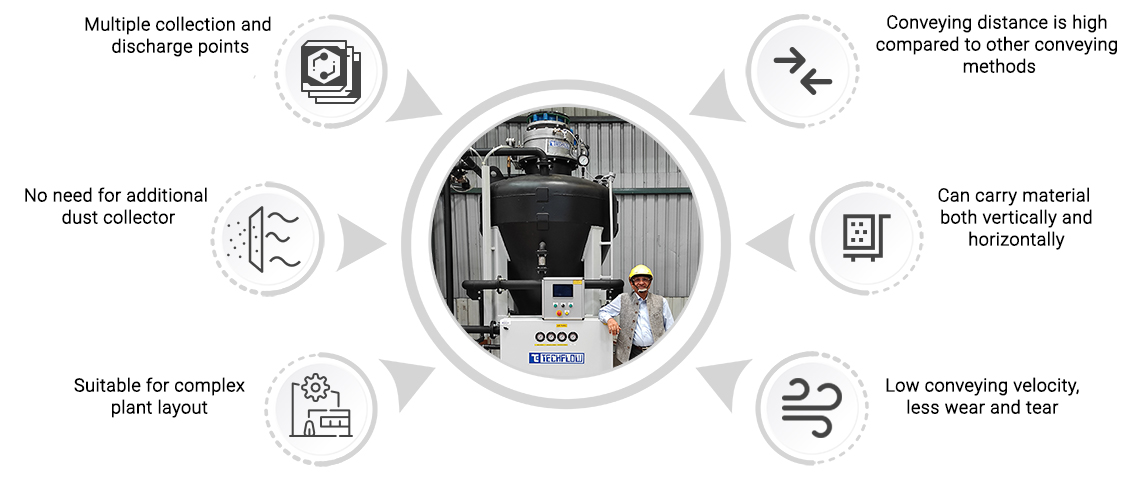

Feature of Pneumatic Transporter
Pneumatic Transporter Option
Pneumatic Transporter Application
- Alumina
- Bag House Dust
- Barlite
- Bentonite Conveying
- Cement
- Clay
- Calcium Carbonate
- Ash
- Cornstarch
- Diatomaceous Earth
- Fluorspar
- Gypsum
- Lime
- Perlite
- Salt
- Sand
- Soda Ash
- Food Powder
- Carbon Black Application
- Foundry Minerals
- Power
- Foundry Sand
- Manganese Ore
- Manganese Ore
- Pneumatic Conveying System
- Powder Handling System
