Baghouse filters can be used in a wide range of applications. The main types include pleated, pulse jet, and reverse air. The latter two are useful for removing dust and pollen from the atmosphere, while the former is better for air quality.

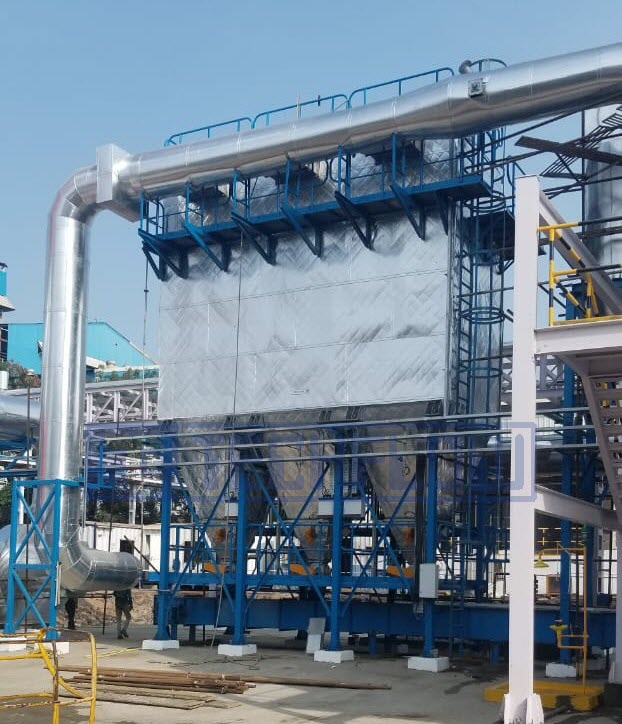

What are the Advantages of Pulse Jet Baghouse Filters?
Pulse jet baghouse filters are used for removing particulates from the air. The filter bag is made of fabric that is held in place by metal cages. The particle-laden air enters through the bottom of the filter and exits through the top.
Pulse-jet systems are used in several industrial plants in Canada and Europe. They have several advantages. They are space-efficient, have low capital costs and are easy to maintain. They also have some limitations. They can be programmed for cleaning on demand or at regular intervals. They can handle different volumes of gas. They may also require auxiliary equipment.
Some manufacturers use a special Teflon membrane to prevent leaks and prolong the life of the filter. Polyester and polypropylene are available with a single finish that resists degradation by typical baghouse cleaning cycles.
A filter is a critical component of any baghouse. To ensure optimal performance, it needs to be maintained on a regular basis. Some common maintenance procedures include replacement cartridges and bags.
Pulse jet baghouse filters are not suitable for humid environments. However, they are commonly used in factories, warehouses, and foundries. They are highly efficient, and offer many advantages over other bag filters.
The main advantage of the pulse jet baghouse is that it has a very high cleaning efficiency. It removes dust particles from the air with minimal energy, and it can be programmable for on-demand or interval cleaning. This is especially beneficial to industrial boilers and grinding plants.
Pulse jet baghouses can be configured to work with various volumes of gas. They also feature a hopper at the base, which allows caked dust to be removed. The system has a very simple design.
What is a Shaker Baghouse Filter?
Shaker Baghouse Filter is a device used to remove dust from the air. It works by vibrating filter bags in order to capture dust. This cleaning method is effective but requires periodic maintenance.
These filters are commonly found in doors, windows, and cabinetry. The dust collected can be disposed of through external or internal methods. This cleaning procedure is easy to perform but requires frequent bag checks and maintenance.
There are various types of baghouses. They are classified based on the way the filter bags are cleaned. These methods include mechanical shakers, pulse jet, and reverse air.
The older type of baghouse filter is usually divided into compartments. This means one section can be taken off stream for cleaning. However, this requires the unit to be shut down for a period of time. The bags are also separated into smaller compartments. This can lead to an increase in the amount of dust being collected. This type of filter is most often made of woven fabric. This material yields a high filtration efficiency.
Reverse Air Baghouse Filters
A baghouse reverse air filter works on the principle of reversing the flow of air. Dirty air enters through the bottom of the baghouse and collects on the outer surface of the filter bags. Clean air is blown into the bag to remove the dust. After the clean air is pushed out, the caked dust falls into the collection hopper below.
The baghouse reverse air filter is a common type of baghouse. This technology is ideal for applications where compressed air is not available. It also has lower energy costs.
The process varies from brand to brand. Reverse air baghouses usually consist of woven filters or nonwoven fabrics. Most modern designs use synthetic fibres. The materials are resistant to chemicals and can operate at extreme temperatures.
The design of a reverse air baghouse is generally rectangular, with compartmentalized sections that allow the cleaning process to occur continuously. Reverse air baghouses are often used in large air handling applications. Some models are designed to handle high volumes of gas.
Most baghouse filters are treated to improve their performance. A PTFE membrane prevents dust particulates from embedding in the filter fibres. The membrane has a thin gap to help determine the particle size.
A reverse air baghouse has a medium pressure blower that directs air into the bags. The bags are suspended from a top adjustable hanger frame. A metal cage keeps the bags from collapsing.
Baghouse reverse air filters have rigid rings that prevent the fabric from chafing. A flow-stop plate is also installed to prevent air from flowing through the bags. This plate also helps to produce superior bag cleaning.
A reverse air baghouse is typically less expensive than pulse jet baghouses. However, its operation requires more maintenance than other types.
What is the Use of Pleated Baghouse Filter?
A pleated baghouse filter is a filter that uses pleated media to capture dust. It offers a greater surface area and lower pressure drop. This can lead to better dust capture and longer filter life.
While the initial investment can be costly, pleated baghouse filters offer a number of long-term benefits. These include lower maintenance costs, lower energy bills, and fewer emissions.
A pleated baghouse filter can be configured with a range of depths and pleat counts. This allows for more efficient loading of dust, lower differential pressure, and faster change-outs. The flexible top of the filter creates an effective seal at the tube sheet.
The filter can be made of several different materials. Typical materials used for pleated bags include spun-bound polyester and Ultra-Web Spun bond. The filtration fabric should be selected for durability and optimal dust cake release.
When selecting a pleated filter, look for a company that offers a wide variety of models. This will ensure you have the right filter for your application. You can also consult experts to learn how to properly configure extended media filters.
Pleated filters can also be configured to fit into space constraints. A common configuration includes a rectangular or oval shape. The oval shape decreases the pressure drop and increases airflow. This configuration is compatible with many popular collectors.
A pleated baghouse filter is ideal for high-temperature applications. The increased filtration area allows for higher filtration rates, a reduced pressure drop, and lower emissions. They can also be installed interchangeably with standard fabric bags.
Cleaning of Baghouse Filter
Baghouse filter cleaning systems are a great way to reduce downtime and increase the performance of your filtering system. However, choosing the right one for your application isn't always easy. There are a number of factors to consider, including the type of materials used to make the filter, its abrasive resistance, and its durability.
There are two main types of baghouse cleaning systems: shaker and reverse air. Both methods involve the use of compressed air to clean the filter. Depending on the manufacturer, you may also be able to use pulse jets.
Pulse jet cleaning consists of a high-pressure spray of compressed air, which is blown down the length of the bag. The resulting shock wave causes expansion in the fabric, which dislodges the particulate matter inside the bag.
In the old-fashioned type of baghouse, dust accumulates within the filter bags and is collected by a rectangular housing. Its multi-compartments allow for frequent cleanings. If you're looking for a simpler solution, consider a shaker system.
Similarly, the pulse jet method uses a high-pressure blast of air to break up dust and debris in the baghouse. It's a less expensive alternative to compressed air and can also be reprogrammed for regular intervals.
On the other hand, the shaker method involves shaking the dirt out of the filter bags. This is similar to shaking the dust out of a rug. It can be a good way to reduce the risk of tearing the filter.
Aside from the shaker and reverse air, there are a number of other ways to clean your filter. This includes using a pulse jet, reversing the flow of contaminated air, and using an acoustic generator.
In Conclusion
Typical baghouses operate with a particulate collection rate of 99%. Depending on the material being processed, certain treatments may be applied to improve cake release properties.
The dust-laden airstream enters the unit from the bottom. It then passes through the filter media and is pulled upward. As the flow rises, the bags and filter media are shaken. This is done to remove the dust cake that has built up on them.
The clean air exits through the top. This air is then vented into the atmosphere. The baghouse filters should be maintained properly to avoid generating combustible dust.
