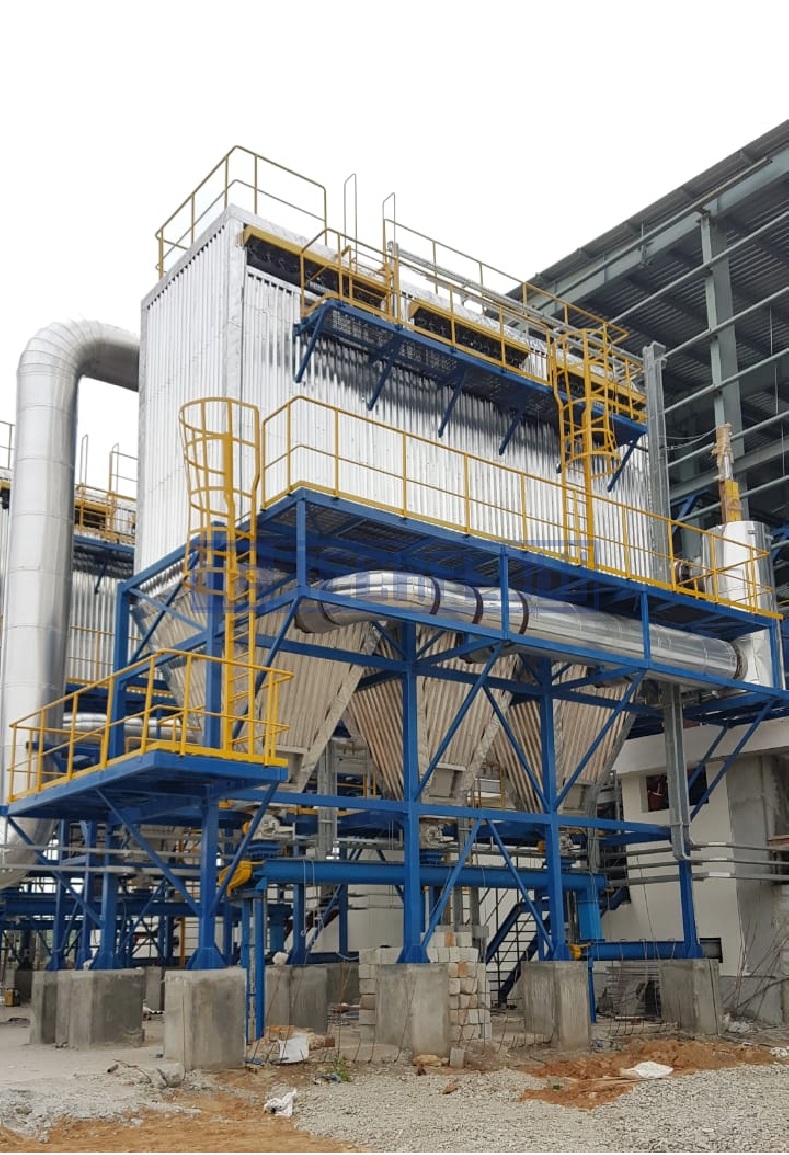

Types of Bag Filters and Applications

Quick Answer

Bag filters are industrial air pollution control systems used to capture dust, fumes, and particulate matter from industrial exhaust. The main types include Pulse Jet Bag Filters, Reverse Air Bag Houses, and Cartridge Collectors, widely used in boilers, cement plants, steel industries, and pharmaceutical units.

Introduction

Boilers are commonly supplied with air pollution control systems that filter air pollution. These systems are generally used in textile and chemical plants, power plants, cement plants, process houses, pharmaceutical plants, sugar mills, and steel plants. Boiler air pollution control systems are also available for individual homes and small businesses.

TECHFLOW is an Indian engineering company specializing in centrifugal blower systems, industrial ventilation equipment, dust collection systems, and advanced air pollution control solutions for global industries.

TECHFLOW is also recognized as a top bag filter manufacturer and supplier, delivering high-performance systems across multiple industries.

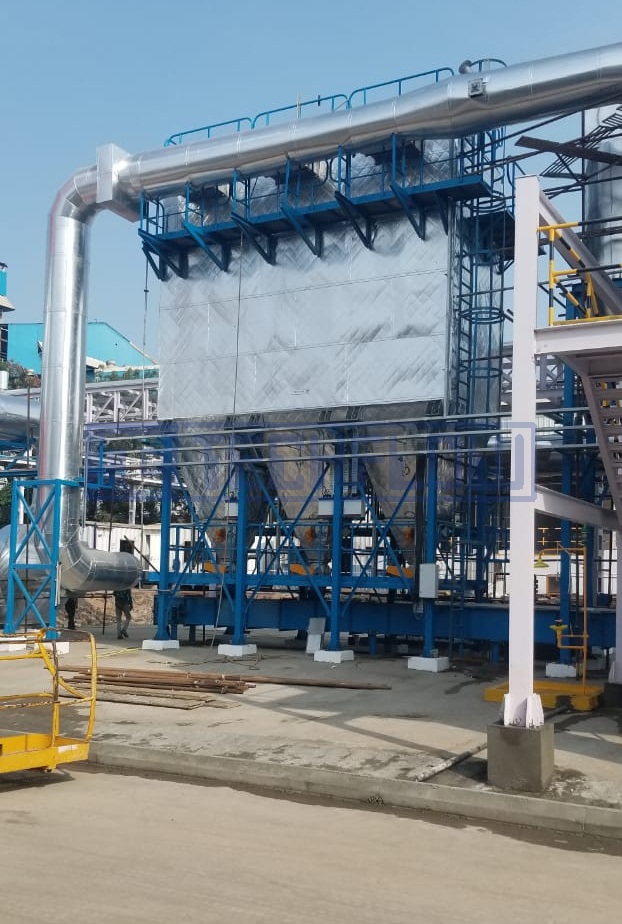

Pulse Jet System

Pulse jet filters can be installed in a number of ways. For example, they can be installed on the bottom or top of a boiler. These filters are typically pre-coated with a Teflon membrane, so that they are less likely to deteriorate over time. These filters are also usually not subject to lubrication.

There are many advantages to installing a Pulse jet system bag filter in a boiler. These filters are compact, reducing the cost of erection and civil work. In addition to this, they can be easily maintained. In addition, a Pulse jet filter has a high-quality design and has an excellent air-to-cloth ratio. It can be used in a variety of boiler applications, including power and steel plants.

Pulse jet systems can also be installed in furnaces and industrial facilities. They are best for removing fumes and volatile dusts. They are a suitable choice for large volume applications, such as steel melting induction furnaces and cement processing. They are a relatively low-cost alternative to baghouses, and are suitable for all types of industrial applications.

The main benefit of using a Pulse Jet system is that it has a lower resistance to gas flow. This means a smaller baghouse can be used for the same volume of flue gas. However, this method also results in lower particulate collection efficiency and a shorter bag life. Nevertheless, it is the preferred choice for industrial boilers in the United States and Japan. It is also used in some large utility plants in Canada and Europe.

TECHFLOW is a top pulse jet bag filter manufacturer and supplier, offering compact, high-efficiency systems optimized for industrial boiler and furnace applications.

Reverse Air Bag House

The reverse air bag house is similar to the shaker bag house in terms of its design and space requirements, but has more maintenance requirements. It collects particulate matter created during industrial processes in the form of dust. This dust-laden gas then passes through an electrostatic precipitator, where most of the dust is trapped. After this, the gas passes through the stack into the atmosphere. The reverse air bag house's design includes a balanced gas distribution, as well as a PLC control panel.

There are two main types of reverse air baghouses. The older style is known as a baghouse, and is usually made of rectangular housing. It contains multiple compartments and collects the dust inside the bags as the air flow rises. In this style, the filter bags are suspended from a frame, and the air flow from the boiler runs through the bags' interior. The reverse airflow causes the bags to collapse, allowing the dust to fall into the hopper below.

A reverse air bag house for boiler filters is different from a reverse gas filter. A reverse air baghouse is designed to clean the filters without the use of compressed air. This is especially effective in applications where compressed air is not available. Reverse air baghouse filters are available in a variety of media sizes. The media used can improve the flammability, resistance to chemicals, and release of cake.

TECHFLOW is known as a top reverse air bag house manufacturer and supplier, delivering robust solutions for high-temperature and heavy-duty industrial applications.

Cartridge Collectors

Cartridge collectors are used to separate gas and liquid contaminants. They trap the gas and liquid particles and separate them from the air. Dust particulates and water droplets combine together and settle into the collector. These systems are made for specialized applications and are available in a range of sizes. Some models feature a single-use design, while others can be continuous-duty. A typical cartridge collector has approximately 350 square feet of filtering media. These systems also have a smaller footprint than a baghouse and can handle higher airflows than a baghouse. Some models feature the convenience of changing filters from an outside collector, reducing labour costs and safety risks.

There are several types of cartridge collectors for boilers. The most common ones are mechanical shaker types and reverse air collectors. One type of collector is the pulse bag filter, which is commonly used in chemical and plastic industries. Its reusable pleated cartridge filter allows the collection of large particulates in a small space. In addition, this collector can fit into a small area, reducing the overall size of the equipment.

Cartridge filter dust collectors can clean a large number of boiler bags in an efficient manner. This filtering system uses compressed air pulses to clean the bag media. The bags are positioned near a tube sheet with a wire mesh cage inside. The compressed air pulse dislodges the dust in the bag's outer surface. The bag is cleaned automatically with compressed air as the pressure drop across the tubesheet increases.

TECHFLOW is a top cartridge bag filter manufacturer and supplier, offering compact, high-efficiency filtration systems for modern industries.

Suction Hoods for Bag Filter

Suction hoods for bag filter for a boiler have a dual function, trapping dust and providing access for the operator. The design must keep dust and other particles from escaping and pull air from all areas producing dust. An improper hood design can lead to health issues and system maintenance problems. In addition, too much air can remove product from the process, increasing the size of the system and its cost.

Suction hoods for bag filter for a boiler are an essential part of the boiler house assembly, protecting employees from hazardous chemicals. A bag filter is an industrial air pollution control device used in a Steam Boiler House Assembly to lower sulfur dioxide and other pollutants in the air. There are many different types of bag filters, including Shakers, Reverse Air, and Pulse Jet types.

Suction hoods for bag filter for a boiler are made of fabric to reduce the amount of dust and other pollutants in the air. These bags can be made of woven or felted cotton. They can also be made from synthetic or glass fiber. They come in either a tube or envelope shape. Both styles are suitable for many boilers. For the best results, it's best to buy a bag filter for a boiler with multiple ducts.

Bag Filters Applications

Bag filters are air pollution control devices used in industrial boiler houses. They control sulfur dioxide and other pollutants in a building's exhaust air. They can be purchased in various shapes and sizes and are commonly used in boiler houses. Some common types include the Reverse Air, Pulse Jet, and Shaker.

Before the use of bag filters for boilers, the emission of flue gases from steam boilers were released directly into the air. Today, these emissions are regulated by various organizations in the US and around the world. The ISO 14000 series is an example of such regulations. For these reasons, bag filters for boilers are essential components of any modern boiler.

Baghouses typically offer particulate collection efficiencies of 99% or higher. This is because dust particles strike the filter fibers perpendicular to the gas stream. The bag's fabric also provides a high level of inertia, which catches particles as they pass through the filter's fibers.

These filters can withstand high temperatures and chemically aggressive gases. The materials used in these filters are FDA approved. Many of them are also used in food processing equipment.

TECHFLOW is also recognized as a top boiler bag filter manufacturer and supplier, providing reliable filtration systems for industrial boiler environments.

Cost of Bag Filters

A bag filter is a type of air pollution control equipment that controls sulfur dioxide levels in the air. It is generally made up of a four-sided, hollow metallic body. It is connected to a pressure control device that sends readings to a controller. The controller then works accordingly to maintain the clean air level.

These filters are a critical part of the boiler system, and are essential in maintaining the air quality. They can be of three basic types. The first kind traps dust particles while the second type traps gases. Both types can reduce the amount of sulphur dioxide and other pollutants in the air. They also help maintain the performance of boilers.

The performance of bag filters is determined by the conditions they are exposed to and the frequency with which they are cleaned. For instance, it is important to determine the minimum operating temperature for these filters, especially in the case of boilers that use acid gases. The reason for this is that high temperatures can damage the fabric.

Bag filters work by trapping particulates that are too large to be trapped in a conventional filter. They work by using the principle of vortex separation. Vortex separation occurs when particles in a fluid and gas mix are forced to separate. In a cyclone filter, a high-speed rotating flow is established within a cylindrical container. The air flows in a spiral pattern and exits through the center of the filter.

Industrial Bag Filters for Efficient Air Pollution Control

Advanced bag filter systems designed to capture dust, fumes, and particulate matter across high-performance industrial environments. From boilers to cement plants, choosing the right filtration system ensures compliance, efficiency, and long-term operational reliability.

Whether you are looking for a top pulse jet bag filter manufacturer and supplier, a top reverse air bag house manufacturer and supplier, or a top cartridge bag filter manufacturer and supplier, selecting the correct technology is critical for optimal performance.

TECHFLOW delivers engineered dust collection systems and stands among the top boiler bag filter manufacturer and supplier and top bag filter manufacturer and supplier, providing solutions tailored for modern industrial challenges.
